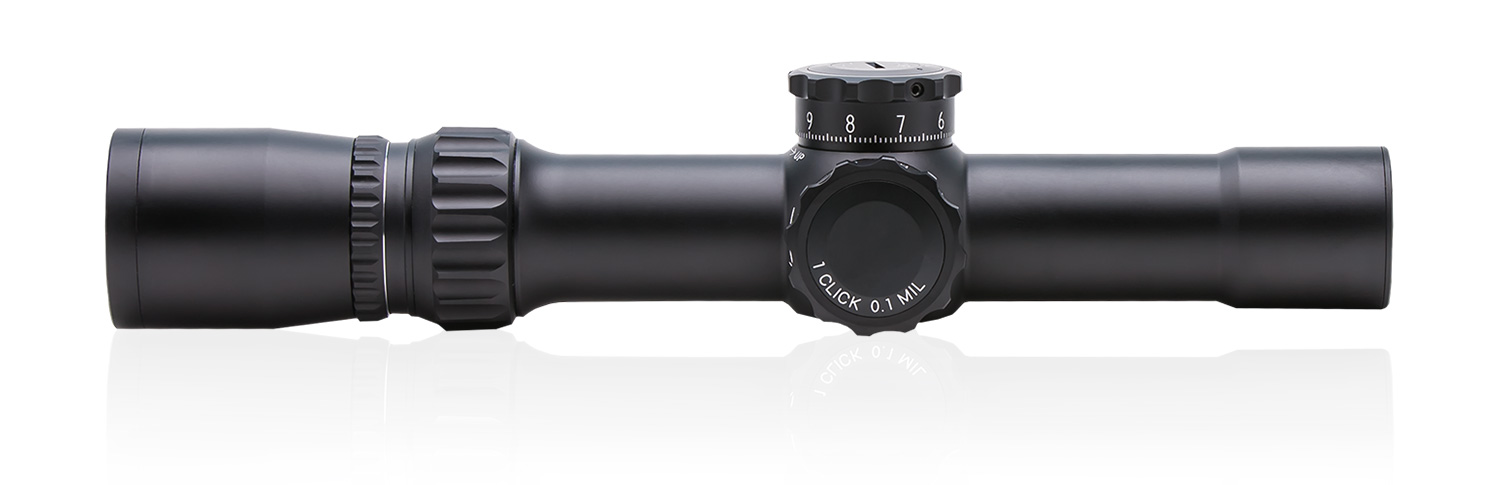

MARCH 1x-8x24 Shorty.

FFP Rifle Scope.

MARCH 1x-8×24 zoom scope has an 8x magnification ratio, which is the highest magnification ratio in a FFP (first focal plane) configuration rifle scope made to date. The m-rad reticle scale value remains constant across the entire zoom range. It is easy to range a target without thinking about where to set the zoom range. Target ranging is accurate at any power. One turn of the adjustment dial is 10 mil radian and one click value is 1/10 m-rad. Reticle is FMC-1.

Verfügbar bei Nachlieferung

  • FMC-1
  • FMC-2
  • FMC-3
  • illuminated FMC-1
  • illuminated FMC-2
  • illuminated FMC-3
Auswahl zurücksetzen
  • First Focal Plane (FFP) reticle with 8x zoom ratio.
  • The Mil-Radian reticle scale value remains constant across the entire zoom range.
  • 56 Mil-Radian windage and elevation adjustment range. One turn of the dial is 10 Mil-Radian. One click is 1/10th Mil-Radian.
  • Side focus/parallax adjustment from 10 yards to infinity.
  • Compact Overall size with Long eye relief and 30mm main tube design.

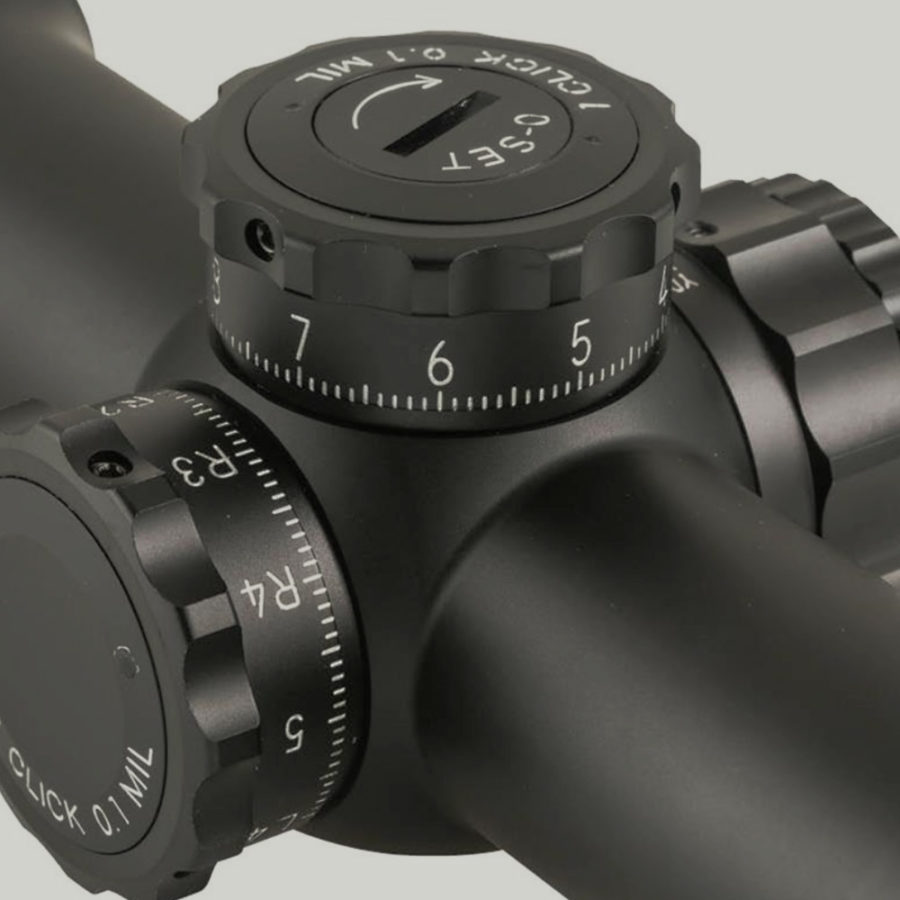

  • Tactical turrets with zero set facility within the elevation turret. Simple to set and cannot get accidentally changed.
  • Choice of illuminated or non illuminated glass etched reticle models.
  • Supplied with leather lens covers and plastic lens covers.
  • Reticles: FMC-1 and FMC-2 (non illuminated D8V24FMC, illuminated D8V24FMC).
  • STD intensity and new LOW intensity illumination modules available.
  • Magnification ~ 1x to 8x
  • Effective Lens Diameter - 24mm
  • Body Tube Diameter - 30mm
  • Exit Pupil ~ 1x, 6.1mm. 8x, 3mm
  • Field of View, real ~ 1x, 20° 35.27m/100M. 8x,  2.5° 4.36m/100M
  • Eye Relief ~ 1x, 86-98mm. 8x, 86-98mm
  • 1 Click Adjustment ~ 0.1Mil
  • Elevation Travel ~ 56Mil
  • Windage Travel ~ 56Mil
  • Focus ~ Fixed Focus
  • Distance ~ 100 Yards
  • Finish - Matte Black
  • Reticle - See reticles
  • Total Length ~ 256mm
  • Weight - 530g | 560g

A   256mm

B  129mm

C  33mm

D  41mm

E  35mm

F  92mm

G  49mm

H  42mm

NON ILLUMINATED RETICLES
(Absehen unbeleuchtet)

FMC-1

ILLUMINATED RETICLES
(Absehen beleuchtet)

FMC-1-illuminated

NON ILLUMINATED RETICLES
(Absehen unbeleuchtet)

FMC-2

ILLUMINATED RETICLES
(Absehen beleuchtet)

FMC-2-illuminated

NON ILLUMINATED RETICLES
(Absehen unbeleuchtet)

FMC-3

ILLUMINATED RETICLES
(Absehen beleuchtet)

FMC-3-illuminated
